FI box - OL - 15 kW for 2 S controllers secu/ins 110 VAC
On order
Need advice?
Call us on +33 (0)9 69 32 22 57 for product advice or help to finalize your purchase. Free call.
Product description

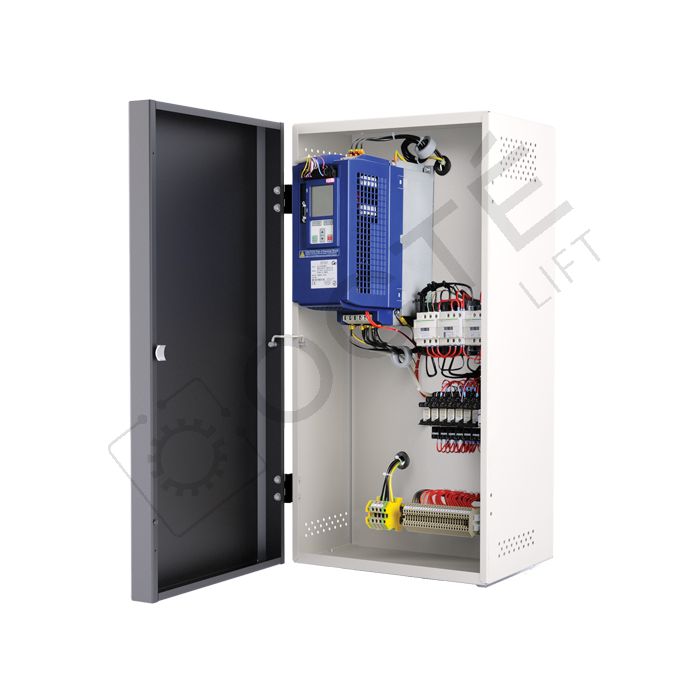

Composition :
• 1 open or closed loop inverter unit (according to kit)
• 2 connecting ropes adapted to the existing controller
Additional information :
• three phase mains voltage 380 (+/- 20%)
• max. Motor power 15 kW (15 CV)
• max. rated motor intensity 33 A
• max. output intensity 49.5 A
Compaticity with 2 speed controllers:
OTIS MCS220. OTIS NE/MS300. OTIS LEM, OTIS MCS310. OTIS MUP0 1.
OCTÉ SIMINOR SM210. OCTÉ SIMINOR SC640. MEA NG01
More Information
| Weight | 33.00 kgs |
|---|---|
| Longueur colis | 77.50 CM |
| Largeur colis | 49.50 CM |
| Profondeur colis | 37.50 CM |
| Eco Contribution | €0.00 |
| Model | OTIS MCS220, NE/MS300, LE |
| Power | 15 kW |
| Safety chain / Insp. Voltage | 110 VAC / 110 VAC |
Composition :
• 1 open or closed loop inverter unit (according to kit)
• 2 connecting ropes adapted to the existing controller
Additional information :
• three phase mains voltage 380 (+/- 20%)
• max. Motor power 15 kW (15 CV)
• max. rated motor intensity 33 A
• max. output intensity 49.5 A
Compaticity with 2 speed controllers:
OTIS MCS220. OTIS NE/MS300. OTIS LEM, OTIS MCS310. OTIS MUP0 1.
OCTÉ SIMINOR SM210. OCTÉ SIMINOR SC640. MEA NG01
| Weight | 33.00 kgs |
|---|---|
| Longueur colis | 77.50 CM |
| Largeur colis | 49.50 CM |
| Profondeur colis | 37.50 CM |
| Eco Contribution | €0.00 |
| Model | OTIS MCS220, NE/MS300, LE |
| Power | 15 kW |
| Safety chain / Insp. Voltage | 110 VAC / 110 VAC |
