Machinery power supply unit with 4-pole circuit breakers D50A for duplex
On order

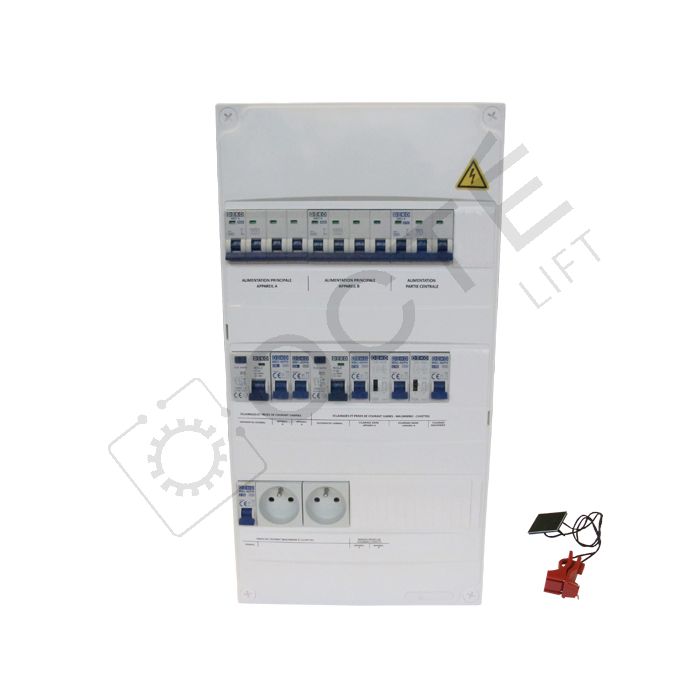

DTU Duplex power supply enclosure for elevator machine room, fitted with a D-curve 50A four-pole circuit breaker. Wired with a type E socket outlet, compliant with French electrical installation standards. The D-curve 50A tripping characteristic offers high tolerance to start-up current peaks, recommended for high-inertia motors. A complete, ready-to-wire solution designed for new installations and machine room refurbishments alike.
Need advice?
Call us on +33 (0)9 69 32 22 57 for product advice or help to finalize your purchase. Free call.
Product description
Composition:
• 1 enclosure, 3 × 13 modules, 250 × 97 × 470 mm
(x2) four-pole circuit breaker, 50 A, 400 Vac, curve D
(x1) three-pole circuit breaker, 10 A, 400 Vac, curve C
(x1) circuit breaker, 25 A, 230 Vac, 30 mA residual current protection
(x1) circuit breaker, 32 A, 230 Vac, 30 mA residual current protection
(x2) circuit breaker, 6 A, 230 Vac, curve C
(x4) circuit breaker, 10 A, 230 Vac, curve C
(x2) impulse relays, 16 A, 250 Vac
(x2) socket outlets, 250 Vac, 16 A, type E
• Mounting accessories
(x1) locking system for circuit breaker
Additional information:
• Padlock locking system (padlock not supplied)
Standards compliance:
EN IEC 61439
EN 81-20
EN 60898
NF P82-230
More Information
| Weight | 4.18 kg |
|---|---|
| Longueur colis | 48.50 cm |
| Largeur colis | 26.50 cm |
| Profondeur colis | 11.50 cm |
| Eco Contribution | €0.00 |
| Type | Duplex |
| Amperage | 50 A |
Composition:
• 1 enclosure, 3 × 13 modules, 250 × 97 × 470 mm
(x2) four-pole circuit breaker, 50 A, 400 Vac, curve D
(x1) three-pole circuit breaker, 10 A, 400 Vac, curve C
(x1) circuit breaker, 25 A, 230 Vac, 30 mA residual current protection
(x1) circuit breaker, 32 A, 230 Vac, 30 mA residual current protection
(x2) circuit breaker, 6 A, 230 Vac, curve C
(x4) circuit breaker, 10 A, 230 Vac, curve C
(x2) impulse relays, 16 A, 250 Vac
(x2) socket outlets, 250 Vac, 16 A, type E
• Mounting accessories
(x1) locking system for circuit breaker
Additional information:
• Padlock locking system (padlock not supplied)
Standards compliance:
EN IEC 61439
EN 81-20
EN 60898
NF P82-230
| Weight | 4.18 kg |
|---|---|
| Longueur colis | 48.50 cm |
| Largeur colis | 26.50 cm |
| Profondeur colis | 11.50 cm |
| Eco Contribution | €0.00 |
| Type | Duplex |
| Amperage | 50 A |
