Retiring cam motorised RKMO 24VDC adaptaation EMT15K/17/18
On order
Need advice?
Call us on +33 (0)9 69 32 22 57 for product advice or help to finalize your purchase. Free call.
Product description
Composition :

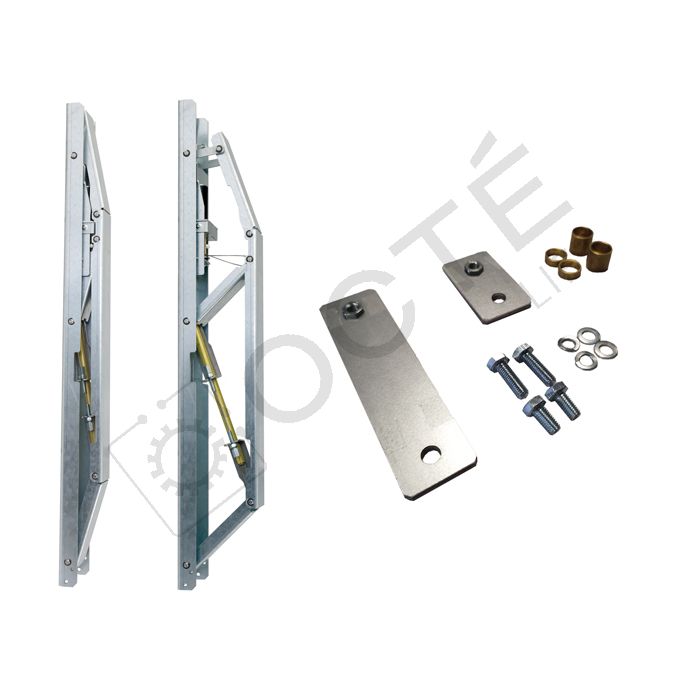

• 1 retiring cam prewired 2x0,25mm² L 2 m with power supply 24V DC
• Mounting kit for RKMO as a replacement for EMT15K and EMT17/18
Additional information :
• Cycle: 100% ED
• Retracted height: 50 mm
• Adjustable stroke from 25 to 50 mm
• Force: 65 N
• Temperature: -10°C to +45°C
• Voltage: 21 V - 30 V DC
• Maximum peak voltage: 36 V
• Current: 1 A / 0.25 A
• Protection: IP 00 (very low safety voltage)
• Weight: 2.7 kg
More Information
| Weight | 0.00 kgs |
|---|---|
| Longueur colis | 0.00 CM |
| Largeur colis | 0.00 CM |
| Profondeur colis | 0.00 CM |
| Eco Contribution | €0.00 |
| Model | RKMO |
| Voltage | 024 V |
Composition :
• 1 retiring cam prewired 2x0,25mm² L 2 m with power supply 24V DC
• Mounting kit for RKMO as a replacement for EMT15K and EMT17/18
Additional information :
• Cycle: 100% ED
• Retracted height: 50 mm
• Adjustable stroke from 25 to 50 mm
• Force: 65 N
• Temperature: -10°C to +45°C
• Voltage: 21 V - 30 V DC
• Maximum peak voltage: 36 V
• Current: 1 A / 0.25 A
• Protection: IP 00 (very low safety voltage)
• Weight: 2.7 kg
| Weight | 0.00 kgs |
|---|---|
| Longueur colis | 0.00 CM |
| Largeur colis | 0.00 CM |
| Profondeur colis | 0.00 CM |
| Eco Contribution | €0.00 |
| Model | RKMO |
| Voltage | 024 V |
