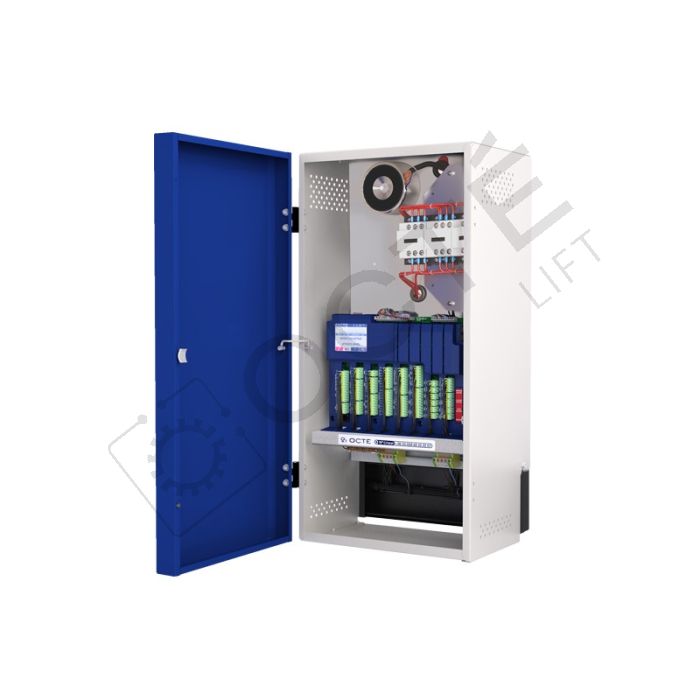

Composition
• 1 controller:
+ 1 main board with with 3.5 "touch screen
+ 1 SD card
+ 1 built-in battery
+ 1 shunt management of doors
+ 1 power circuit
Additional informations:
• installation in above or below machine room
• dimensions: 700 x 370 x 340 mm
• optional back-up (Rescue device)
• according to the standards:
- EN 81-20: Siren function and buzzer integrated in VERSO car roof unit + Emergency battery integrated
- EN 81-21: Reduced clearances management by overspeed governor and double way safety gears or by upper stops +
Lock contacts managed by electronics (SIL 3)
- EN 81-70: Integrated voice synthesis
- UCM - Uncontrolled Car Movement management is integrated: Brake on low speed shaft / Locking of the overspeed governor (without Re-leveling )
Technical characteristics
• Control:
- Automatic push button / Non-directional collective / Down collective / Full collective
- 30 levels bus or wired (7 basements)
- 1 or 2 side(s) of service (elapsing, opposite ou square)
- Simplex / Duplex / Triplex / Quadruplex
- Wired or BUS landing
• Motorisation: 1 or 2 speeds
• Power :
- Three phase 220 V or 380 V Power supply
• Selection:
- Safety optronic sensor SIL2
- Stopping accuracy: 1.2 mm
- Management between short levels: 30 mm
- Toe-guards control
- Automatic travel curve calculation
- Maximum speed: 1 m/s
• Other functions :
- Digital code by the car operating panel (COP)
- Autonomous door / Box with opening/closing orders / Three phases 380 V
- Screen locking
- Electro cams and brakes tensions from 40 to 120 VCC / Brake 220 V
