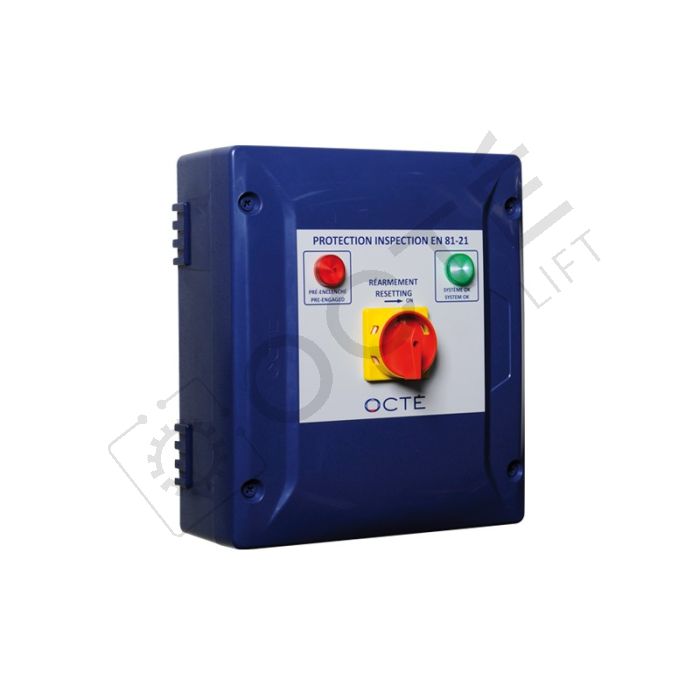

VERSO Reduced reserves checking device EN81-21
Need advice?
Call us on +33 (0)9 69 32 22 57 for product advice or help to finalize your purchase. Free call.
Product description
Composition:
• 1 safety system EN 81-21 unit
• 1 battery 12 V 7 Ah
• 1 sound signalling unit
• 2 limit switch prewired with T guide fastening
Reminder of the standard
Top clearance:
• free distance: 1,2 m + 0,035 v²
• safety volume: 500 x 600 x 800 mm
Pit:
• free distance: 600 mm
• safety volume: 500 x 600 x 1000 mm
Operating Conditions:
• Max. rated speed:1 m/s
• Controller: VERSO OCTÉ
• Speed governor: Ø 200 dual way speed governor certificated OCTÉ with pre-switching device
• Safety gear system: P+Q = 1500 kg and dual way safety gear OCTÉ
• Landing doors: EN 81-21 compliant with opening detection contact by unlocking key
Composition:
• 1 safety system EN 81-21 unit
• 1 battery 12 V 7 Ah
• 1 sound signalling unit
• 2 limit switch prewired with T guide fastening
Reminder of the standard
Top clearance:
• free distance: 1,2 m + 0,035 v²
• safety volume: 500 x 600 x 800 mm
Pit:
• free distance: 600 mm
• safety volume: 500 x 600 x 1000 mm
Operating Conditions:
• Max. rated speed:1 m/s
• Controller: VERSO OCTÉ
• Speed governor: Ø 200 dual way speed governor certificated OCTÉ with pre-switching device
• Safety gear system: P+Q = 1500 kg and dual way safety gear OCTÉ
• Landing doors: EN 81-21 compliant with opening detection contact by unlocking key
